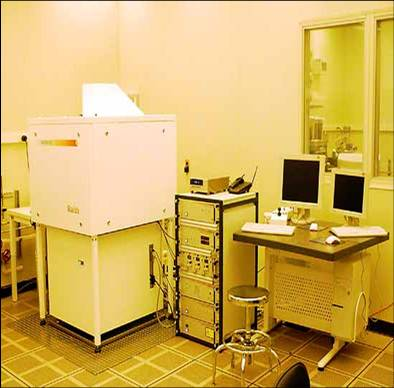

Raith-150 E-beam


A nanolithography system used for creating sub micron patterns. Tool specifications: Min. feature size: 50nm Wafer/sample size: 1 cm – 4” round or 5” x 5” plates Field emission cathode Accelerating voltage: 500V – 30kV Field size: 10- 400um
